Product Category
2700K-6500K Ceiling Round Led Panel Light Dimmable Customized
Product Details
Place of Origin: ShenZhen,China
Brand Name: Best-Linear
Model Number: LL-CLP-R600
Payment & Shipping Terms
Minimum Order Quantity: 100PCS
Packaging Details: carton
Delivery Time: 20 workdays
Payment Terms: T/T
Supply Ability: 2000pcs/month
Specifications
其他信息
| Material | Material |
|---|---|
| LED Qty | 156leds/m |
| Size | D600X75mm |
| Input Voltage | 90-277V,50/60Hz |
| Led Type | SMD5630 |
| Wattage | 46.8W/M |
| Shape | Square Shape,round Shape |
| Kelvin | PW (Pure White, 5,500~7,000K), DW (Daylight White, 4,000~4,500K), WW (Warm White, 2,700~3,500K) |
| IP Rating | IP20 |
| Warranty | 3 Years |
| Dim | 0/1-10V,DALI |
Decribtion

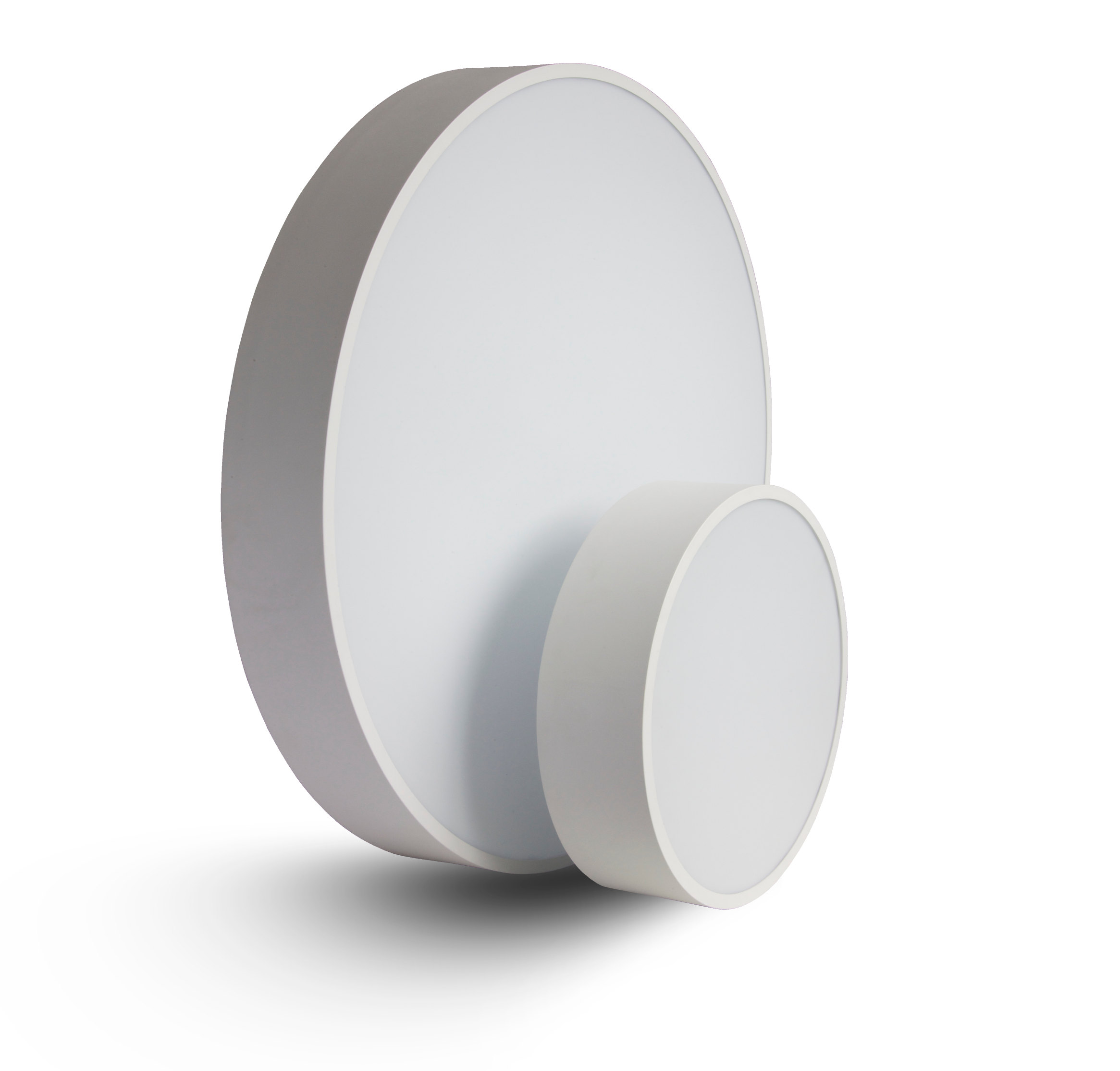

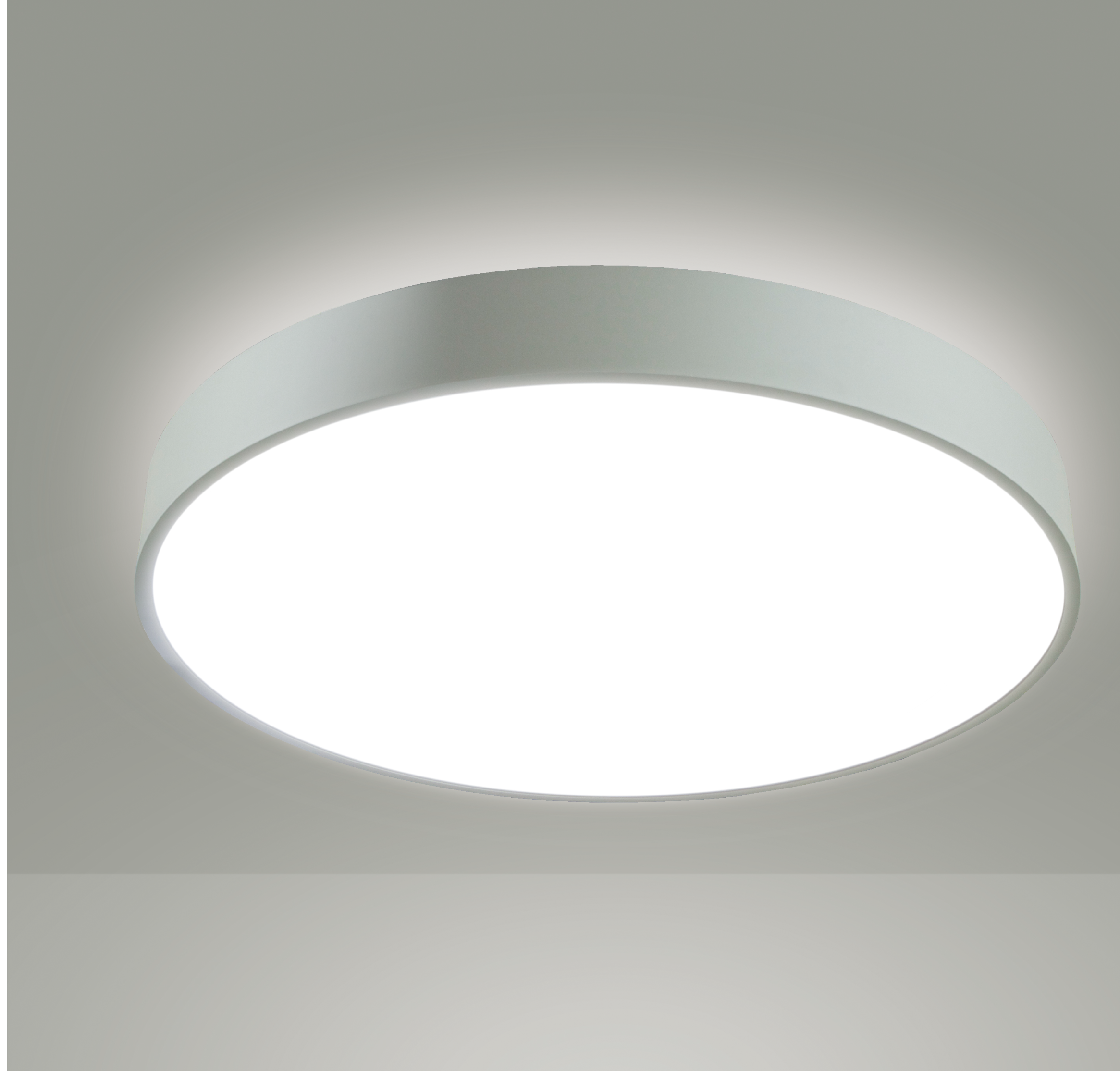

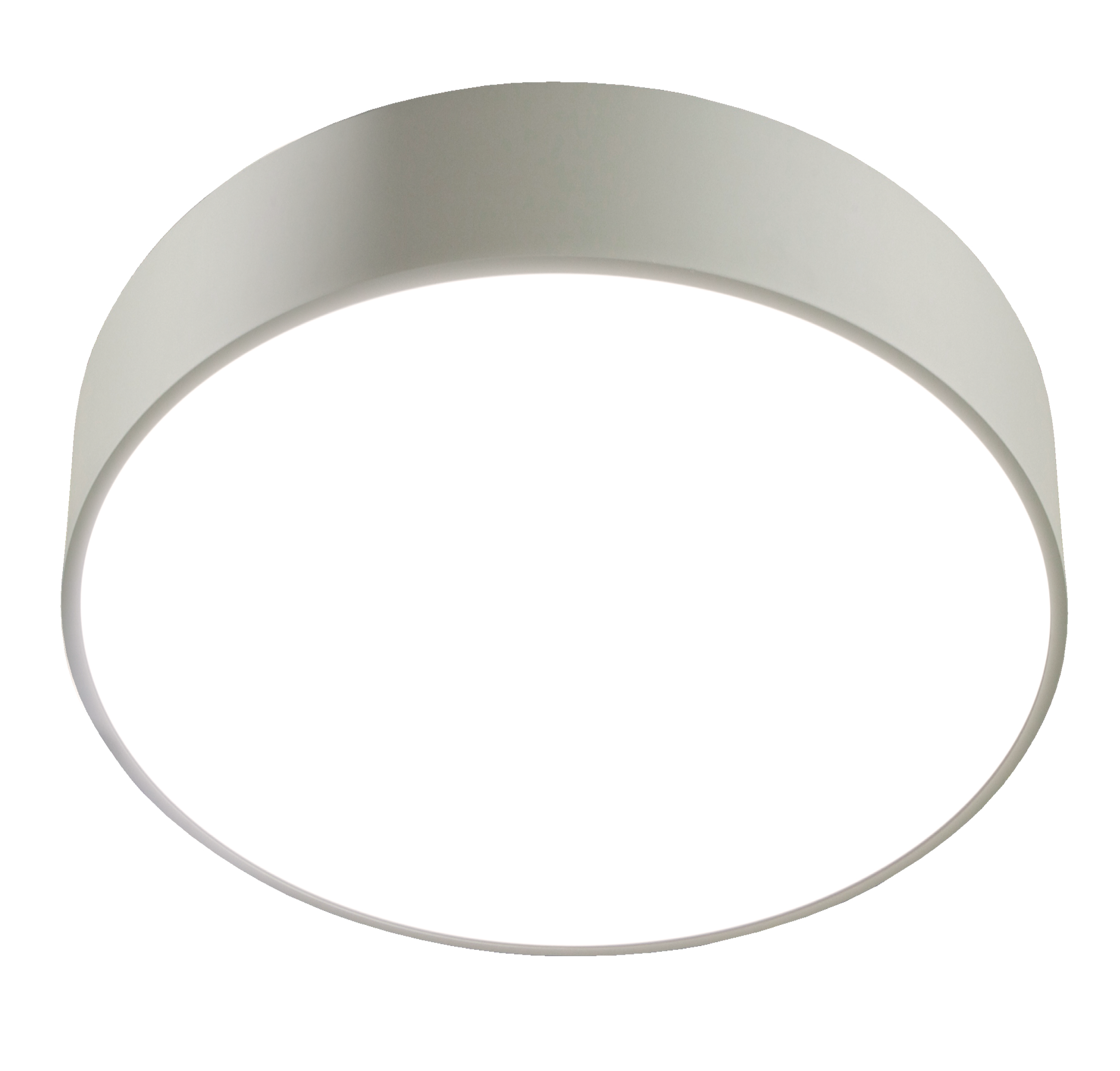

2700K-6500K Ceiling Round Led Panel Light Dimmable Customized
Ceiling Mounted Round LED Panel Light——Diffuser Fixed Type
(High Quality Aluminium Ceiling Mounted Round Led Panel Light Use For Office Or Home Lighting)
Rolling Aluminium Profile
Spinning Aluminium Backplate
CNC cut PC/PMMA diffuser in complete ring
Diffuser fixed by aluminium clips
Osram/Samsung SMD LED with LM80
Kelvin:2700-3500k,4000-4500k,5000-6500k
Color bin in 3steps/5steps,CRI>80/CRI>90
Osram/Tridonic/Meanwell LED Driver
Downlight only/Uplight&Downlight
Dimming(PWM/0/1-10V/DALI) and double kelvin
3/5 years warranty
Size:CLP-R450/600/750/900/1200-H75/105

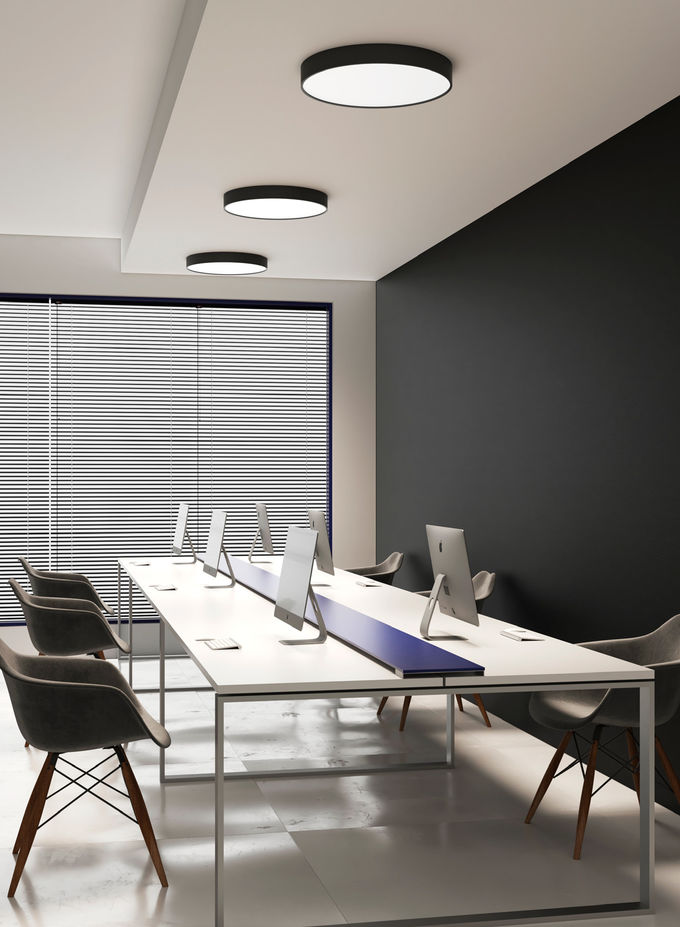

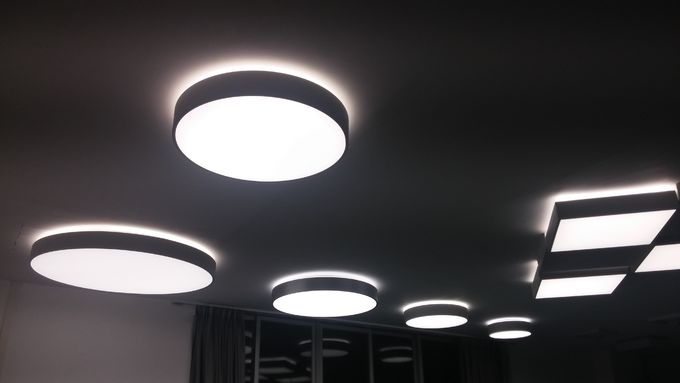

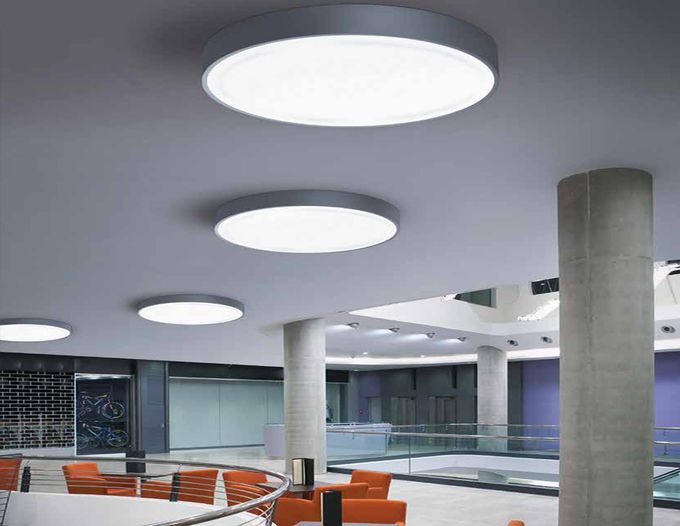

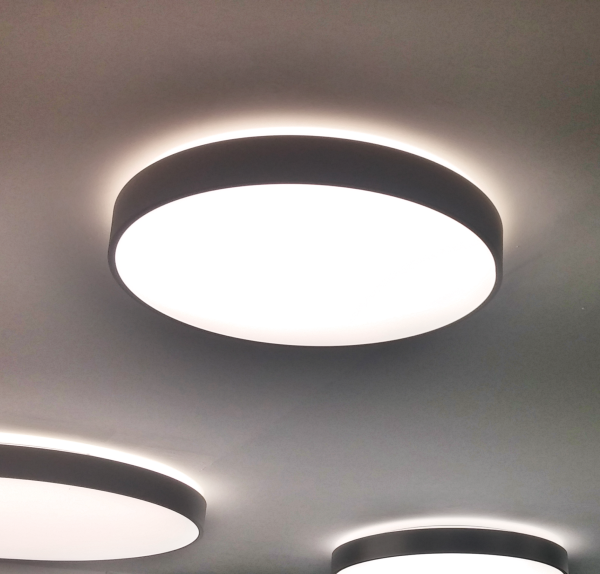

Project application
FAQ
What’s we can do:
A.Project and Customer Design Solution
B.Product design and developing
C.Aluminium Profile and Extrusion Mold design
D.LED Light Source and PCBA design
E.LED Driver & Dimming solution
F.Light Effect and Configuration
What’s we are doing:
A.CNC and Laser Cut for Backplate and Diffuser
B.CNC Rolling,Bending & Spinning for Housing
C.Assembly Production,Online Test and Aging Test
D.Quality Control,Safety test and Final Check
E.Internaional Shipping and Transport
F.Installation Guide and Technical Support
FAQ
Q1: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.
Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q3: What’s the lead time?
A: According to the order quantity, small order usually need 10-15 workdays, big order need negotiation.
Q4: What’s your warranty terms?
A: We supply 3years warranty time.
