Product Category

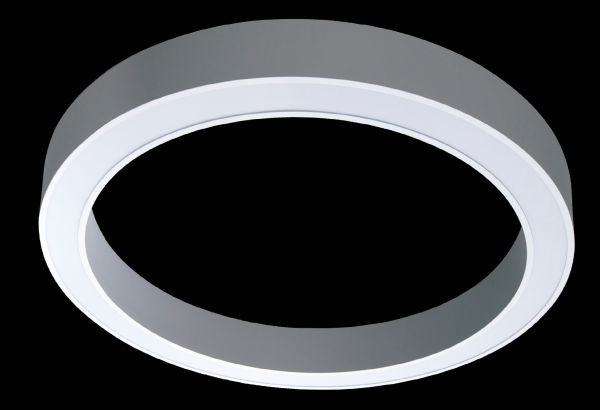

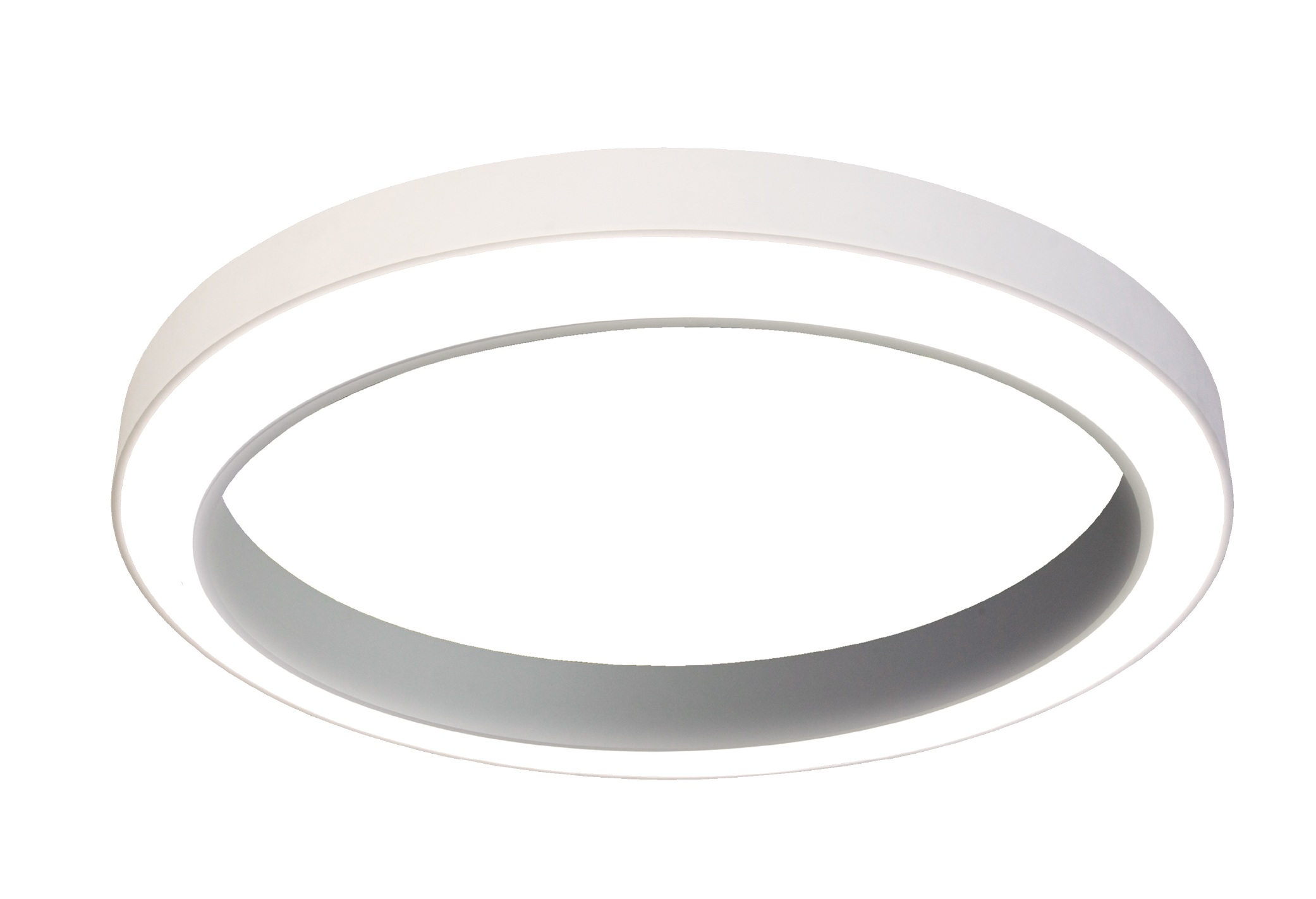

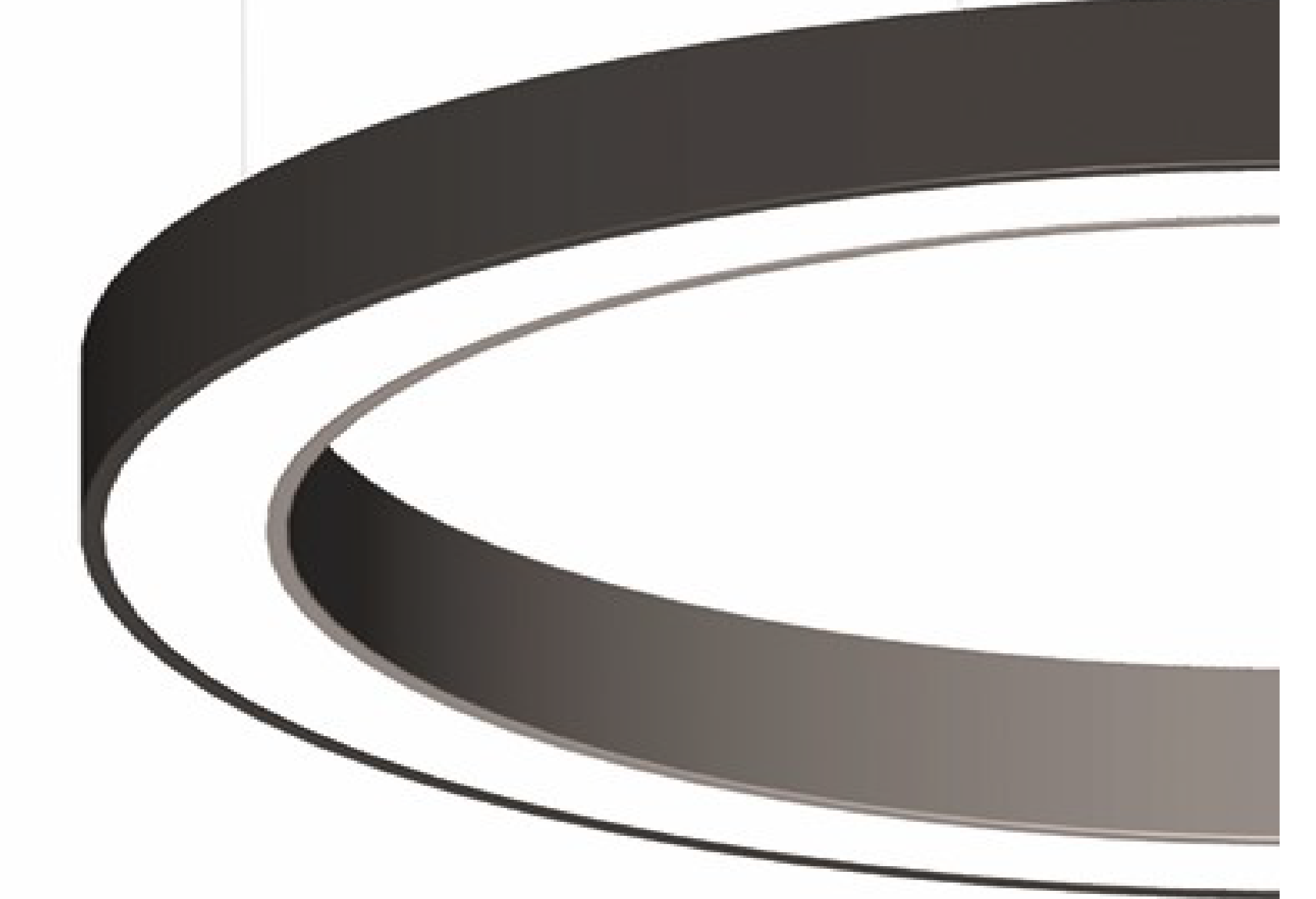

Combination Ring Pendant Lamp LED Linear Light
Product Details
Place of Origin: Shenzhen,China
Brand Name: best-linear
Model Number: LLL-CR900-W60XH75
Payment & Shipping Terms
Minimum Order Quantity: 100PCS
Packaging Details: carton
Delivery Time: 20 workdays
Payment Terms: T/T
Supply Ability: 2000pcs/month
Specifications
其他信息
| Product alias | LED-LLL-CR90 |
|---|---|
| Kelvin | PW (Pure White, 5,500~7,000K), DW (Daylight White, 4,000~4,500K), WW (Warm White, 2,700~3,500K) |
| LED Type | Samsung SMD 0.2~0.5W |
| Input | 90-265V~, 50/60Hz |
| Output Current | 1500mA |
| Output Power | 72.0W |
| Total Lumin | 7,776lm |
| CRI | ≥80 |
Decribtion
Rolling Aluminium Profile
CNC cut Aluminium backplate
CNC cut PC/PMMA diffuser

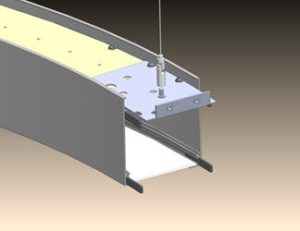

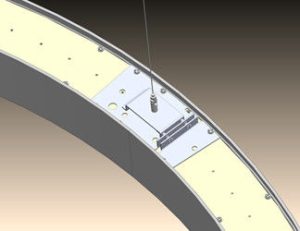

End User Assembly type
Osram/Samsung SMD LED with LM80
Kelvin:2700-3500k,4000-4500k,5000-6500k
Color bin in 3steps/5steps,CRI>80/CRI>90
Osram/Tridonic/Meanwell LED Driver,Built-in LED Driver
Downlight only/Downlight & Uplight
Dimming(PWM/0/1-10V/DALI) and double kelvin
3/5 years warranty

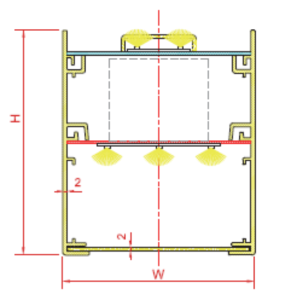

Size:LLA-CRdia-W60/75/90/100/120/150XH75
LLA-CRdia-W75/90/100/120/150/200XH105
CRdia=1500,1600,1800,2000,2400,3000,3600,4800,6000,7200,9000,12000

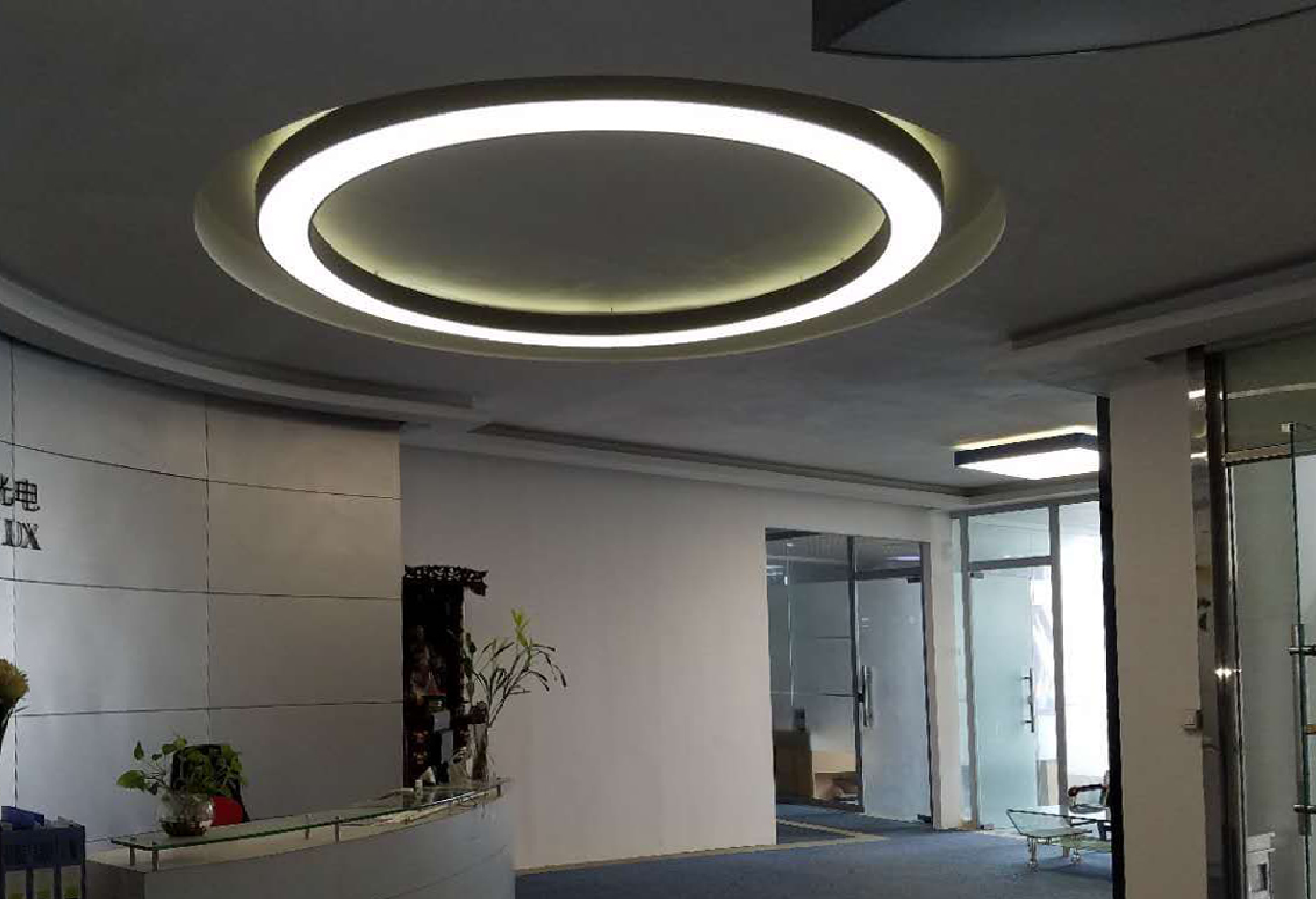

Project application
FAQ
What’s we can do:
A.Project and Customer Design Solution
B.Product design and developing
C.Aluminium Profile and Extrusion Mold design
D.LED Light Source and PCBA design
E.LED Driver & Dimming solution
F.Light Effect and Configuration
What’s we are doing:
A.CNC and Laser Cut for Backplate and Diffuser
B.CNC Rolling,Bending & Spinning for Housing
C.Assembly Production,Online Test and Aging Test
D.Quality Control,Safety test and Final Check
E.Internaional Shipping and Transport
F.Installation Guide and Technical Support
FAQ
Q1: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.
Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q3: What’s the lead time?
A: According to the order quantity, small order usually need 10-15 workdays, big order need negotiation.
Q4: What’s your warranty terms?
A: We supply 3years warranty time.
