IP69 Underwater LED NEON-FLEX–Vertical Bending Type 16x16T
Product Details
Place of Origin: ShenZhen,China
Brand Name: Best-Linear
Model Number: BL-NF-16×16-IP69-24V
Payment & Shipping Terms
Minimum Order Quantity: 100M
Packaging Details: carton
Delivery Time: 20 workdays
Payment Terms: T/T
Supply Ability: 20000m/month

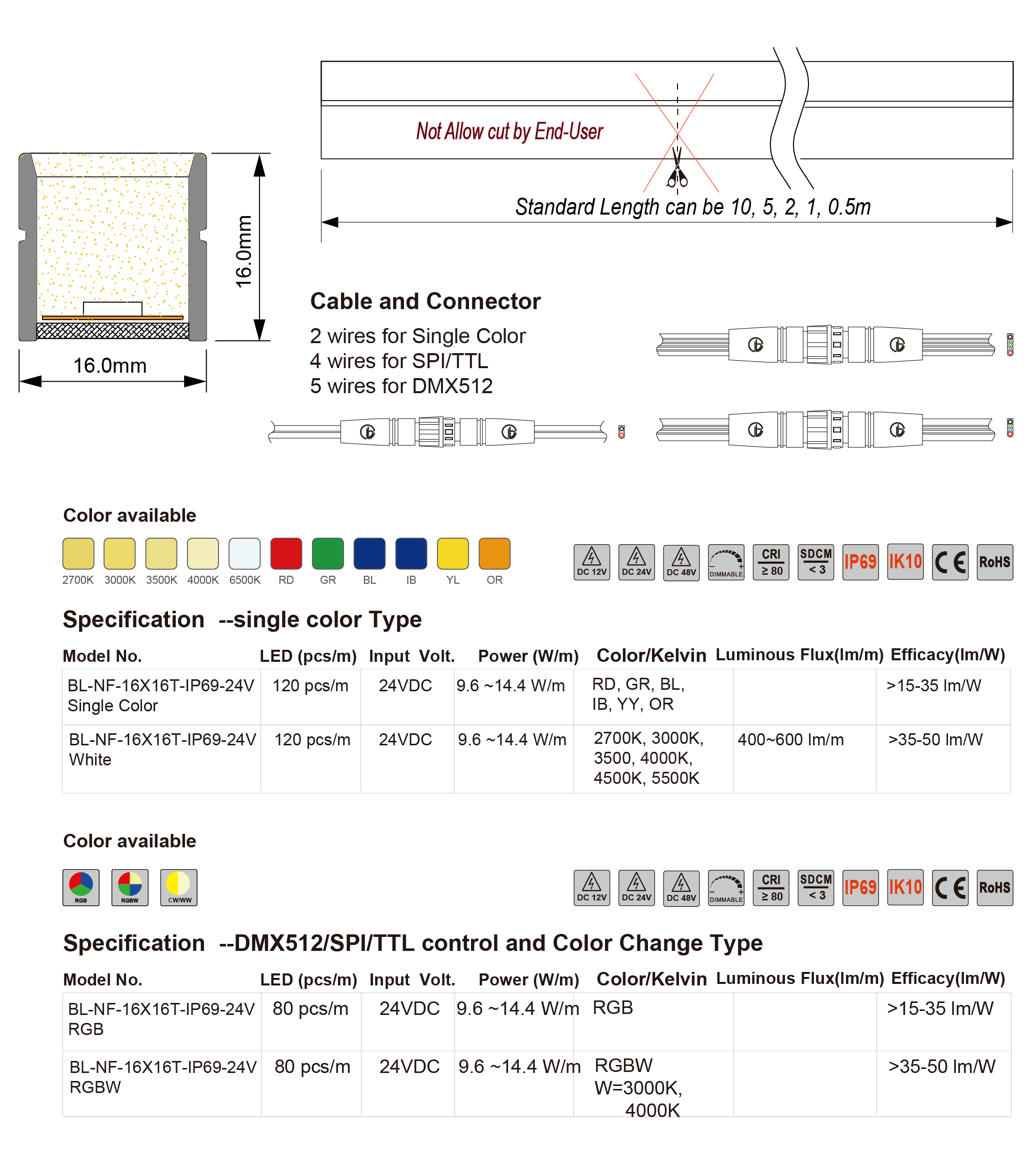

Specifications
Single color Type |
|
| Model No. | BL-NF-16×16-T-IP69-24V Single Color & White |
| LED(pcs/m) | 120pcs/m |
| Input Volt. | 24VDC |
| Power(W/m) | 9.6-14.4W/m |
| Color/Kelvin | WW（4500K~5500K） DW (Daylight White, 4,000~4,500K), WW (Warm White, 2,700~3,500K) RD GR BL IB YY OR |
| Luminous Flux(lm/m) | 400~600lm/m |
| Efficacy(lm/W) | >15-50lm/W |
| IP Rating | IP69 |
| Warranty | 5 years |
DMX512/SPI/TTL control and Color Change Type |
|
| Model No. | BL-NF-16×16-T-IP69-24V RGB & RGBW |
| LED(pcs/m) | 80pcs/m |
| Input Volt. | 24VDC |
| Power(W/m) | 9.6-14.4W/m |
| Color/Kelvin | RGB & RGBW W=3000K,4000K |
| Luminous Flux(lm/m) | 400~600lm/m |
| Efficacy(lm/W) | >15-50m/W |
| IP Rating | IP69 |
| Warranty | 5 years |
其他信息
Decribtion
The product features a continuously variable color linear effect, incorporating advanced glass neon illumination and a polyurethane shell fabricated from engineered pre-mixed materials. The construction is fully encapsulated with UV-resistant polyurethane adhesive, ensuring hydrolysis resistance, weathering resilience, and long-term aging stability. High-performance SMD2835 and SMD5050RGB/RGBW LEDs, compliant with LM-80 standards, provide exceptional lighting performance. The system employs a robust double-layered 2oz copper flexible printed circuit (FPC) for reliable electrical conductivity. Designed to operate up to 20 meters in length, the solution optimizes underwater connectivity, enabling additional LED strip integration without voltage drop issues. This design is supported by a comprehensive 5-year warranty, underscoring its durability and reliability.
Project application
FAQ
What’s we can do:
A.Project and Customer Design Solution
B.Product design and developing
C.Aluminium Profile and Extrusion Mold design
D.LED Light Source and PCBA design
E.LED Driver & Dimming solution
F.Light Effect and Configuration
What’s we are doing:
A.CNC and Laser Cut for Backplate and Diffuser
B.CNC Rolling,Bending & Spinning for Housing
C.Assembly Production,Online Test and Aging Test
D.Quality Control,Safety test and Final Check
E.Internaional Shipping and Transport
F.Installation Guide and Technical Support
FAQ
Q1: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.
Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q3: What’s the lead time?
A: According to the order quantity, small order usually need 10-15 workdays, big order need negotiation.
Q4: What’s your warranty terms?
A: We supply 5 years warranty time.
